Manfrotto umbrella bracket challenge

Photo: Neil Turner

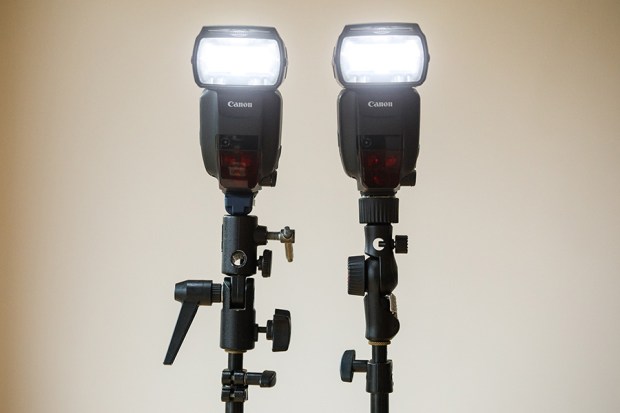

The old Lite-tite on the left and the Snap Tilthead on the right both with Canon 600EX II-RT Speedlites.

When, like me, you have been using a single product successfully for over twenty years it is normally out of a mixture of boredom and curiosity that you have to try out the next “new idea” when you see it. That happened to me a few weeks ago. Having owned and used several of the venerable Manfrotto 029 Lite-tite brackets for so many years I thought that I’d give their new Snap Tilthead with hotshoe a go. For my purposes they will do pretty much the same job: hold a Canon Speedlite flash on a stand with a folding umbrella on those jobs where using other lights isn’t so much of an option. I know that there are dozens of other brands out there but I’m a sucker for certain makes – ones that have served me very well for such a long time.

The more that I have used the new bracket, the more that I have realised that it is very different. Before you take it out of the box you realise that there’s no lever sticking out, no large plastic knob to tighten it onto the stand and that it has a coldshoe built-in. They both have a hole through them to slot an umbrella or other light modifier. In order to compare the two I’m going to start with that built-in shoe.

One of the major gripes with the old Lite-tite is that you had to but a separate shoe that attached using the brass post that was supplied. When I bought my first one I was using Metz flashes which didn’t attach with a shoe and therefore it was fine. From there I moved to using them with Lumedyne flash heads which, again, didn’t attach via a shoe. It was only when I started to work with speedlights that I really noticed. The idea of a shoe attaching via a brass thread and relying on being tightened to stop it spinning has annoyed me for years and the built-in shoe that doesn’t spin on the new bracket appeals to me – and so far, so good. It is easy to use and very secure so that’s a thumbs-up. The metal-to-metal contact is less exciting but it hasn’t caused any issues… yet. A point to the new bracket.

Moving down there is the umbrella slot. On the old bracket this is angled so that the flash points more accurately into the centre of the umbrella (if you attach everything the right way around). On the new one it appears to be straight which means that it never helps with the angling of the flash and so you need to use the dip on the speedlight (if it has one) to better target the light into the modifier. Of course this means that you can’t get it wrong but, for me, this is a point to the original.

Altering the tilt has always been a question of loosening the substantial handle and making sure that the whole thing doesn’t tip (easily done with a big flash and a big umbrella). The build quality of the Lite-tite has meant that they have lasted for a long time – even if you tighten the handle a lot. There is a small round knob on the new one and there is some sort of tensioning mechanism that stops the whole thing tipping. It doesn’t feel as if you could over-tighten this one and the only issue that I have is that it may not have the longevity of its older sibling. A tentative point to the newcomer.

The next point is where it attaches to the stand. There is a simple metal clip that tightens down onto the top of the stand on the new one which initially feels like a big improvement over the substantial threaded knob on the old one. That knob could always be loosened and used as a twist for the light which isn’t really that easy to do with the new one so, once again, you have to play off a bit of functionality against slimline design. The point here just goes to the added functionality of the older model.

Two points each so far. The slimline design of the newer model is very welcome but Manfrotto have, yet again, added a pointless large red logo onto one of their products to annoy me. The victory by the tiniest of margins goes to the new bracket because there’s no way that the flash can twist, because the mechanism that stops it tipping so easily is a welcome plus and because it is smaller and slimmer. That having been said the old one is tougher, better built and far more versatile if you use accessories that don’t use a shoe. I’ve got both now so let’s see if my opinion changes after the now obligatory 32 months.

Photo: Neil Turner

Not a bad Christmas present…

2 comments

  1. Does “the built-in shoe that doesn’t spin on the new bracket appeals to me” mean the flash body will always be facing forward? A lot of the time I angle the body of the flash (on the old bracket) so the infra red sensor gets a better line of sight.
