iPad workflow part two

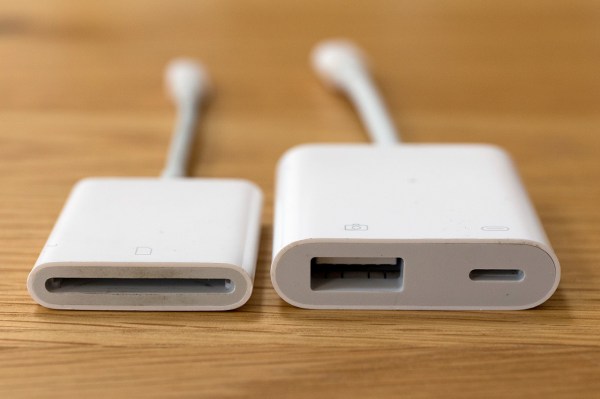

Apple’s Lightning to SD Card and USB3 to Camera adapters

A few weeks ago I promised to keep working on my iPad workflow and keep readers of this blog up-to-date with my thoughts. Lot of other things have got in the way lately but here is the second instalment. I’ve decided to break the whole process down into four parts:

  • Getting the images onto the iPad
  • Toning and captioning them
  • Getting the pictures to where they are needed
  • My conclusions and (hopefully) a settled workflow

The accessories that I’ve used to import images from memory cards onto an iPad for photo editing.Because I’m vaguely logical, I’m going to tackle them in order and so I’m going to outline the ways that I have looked at getting my pictures onto the iPad. Because this is an examination of the possibilities I’m going to consider all of my options and because I’m a Canon user I will tend to lean towards the options for EOS cameras although much of what I’m talking about is not make specific. I have experimented with several ways to get the pictures onto the iPad and I’ve tried all of them as JPEGs and RAW files too:

  1. Plugging a USB cable from the camera via an Apple adapter into the iPad’s Lightning port
  2. Using an Apple Lightning SD card reader
  3. Plugging either an SD or Compact Flash card into the Apple adapter via a card reader using an external power supply
  4. Using the Canon wifi (built-in on the EOS 5D MkIV and EOS6D, via the W-E1 SD device on a 7D MkII and using the WFT-E8 on an EOS1DX MkII)
  5. Via FTP into specific applications using the relevant functions on the EOS5D MkIV, 7D MkII and 1DX MkII
  6. Using an Eye-Fi Mobi card or one of the other after market SD transmitters

Some of the accessories discussed in this post.

Six options which, in different situations, all have their advantages and disadvantages and from the photo above you can see that it all adds up to quite a bit of extra kit should you decide to have everything that you need for every eventuality (and the photo isn’t even complete as it is missing the various SD cards, wifi adapters and the USB camera cable).

What I’d like to do is to go through each option and what you need to make it work and then discuss the pros and cons of each option – so here we go:

  1. Plugging a USB cable from the camera via an Apple adapter into the iPad’s Lightning port: For this you need the Apple Lightning to USB3 camera adapter and a USB cable suitable for your camera. From there it is simple; you connect everything up and the iPad should automatically recognise that there’s a camera connected and show you thumbnails of the photographs with the option to import all of just the selected images. The advantage is the simplicity but that is balanced by the fact that you have to wait for every single thumbnail to load (which is slow with RAW files) before you can do anything. You also have no control over the size of the thumbnails that I can see and you have no way of viewing the images larger to select which ones you want to import. All imports have to go through the Apple Photos app on the iOS device which is sometimes inconvenient.
  2. Using an Apple Lightning SD card reader: This is similar to the first option in that you have one single and very simple adapter, into which you can slot an SD card. It also uses the Apple Photos app which again means quite a slow build if you have dozens of images and no option to view them larger in order to select which pictures you need. The other disadvantage is that you have to shoot the pictures to an SD card – which isn’t a great option if you have a camera without the right slot or if you have set your cameras up to record the images needed onto a different card format.
  3. Plugging either an SD or Compact Flash card into the Apple adapter via a card reader using an external power supply: This uses the same Apple Lightning to USB3 camera adapter that the first option uses but has the advantage of allowing you to then plug in any type of USB3 card reader. Back on the downside you also have to plug in some sort of power supply and you have to be careful which power supply you choose. I have four different charging blocks and/or power packs with USB output here and only one of them worked reliably with this method – and even then only on one of the two different USB power outputs. The power bank that worked was an EasyAcc PB10000C and it was the 1.5amp port. I am going to try a newer model to see if that’s OK too. The main advantages and disadvantages of this method in use are the same as the first two given that you have to use the Apple Photos app but you have to add the extra weight of the power bank and extra cables and card readers too.
  4. Using the Canon wifi (built-in on the EOS 5D MkIV and EOS6D, via the W-E1 SD device on a 7D MkII and using the WFT-E8 on an EOS1DX MkII): This method requires the Canon Camera Connect app and of course the basic wifi connectivity that comes with some cameras but which requires Wireless Adapters for others. Once set up and providing there’s not too much wifi pollution this option works really well with one camera at a time. Because you go through the Canon app it recognises star ratings applied to images in the camera which can be used to drastically speed up the workflow when the app is set to show the rated images first. Importing JPEG files this way is really fast and very easy. RAW files take three or four times as long but the process still works well.
  5. Via FTP into specific applications using the relevant functions on the EOS5D MkIV, 7D MkII and 1DX MkII: Both Shuttersnitch and FSN Pro (and probably other apps) have the option to set your iOS device running those apps as an FTP receiving device. This requires more sophisticated wifi connectivity (currently only the EOS5D MkIV has this built-in) and can cost hundreds of pounds per camera to get this working. Once you have the equipment and have set the cameras up you can choose to send selected images or everything on a given memory card to the iPad where the apps can start to do some work in the background for you. I won’t lie and tell you that setting these apps up is anywhere near as easy as plugging a cable in but the advantages are many. You avoid the Apple Photos App, can connect with multiple suitably equipped cameras without swapping cards, cables or settings and the background processing that Shuttersnitch in particular can do is a potential time-saver.
  6. Using an Eye-Fi Mobi card or one of the other after market SD transmitters: Three or four years ago I was very keen on the Eye-Fi SD cards and used them every day in Canon EOS5D MkIII cameras. The original cards were effectively emasculated by the manufacturers and replaced with their Mobi range. These still have their uses if you want to offload images to an iOS device via their Keenai app. They can suffer from being overpowered by nearby and much stronger wifi signals but where they work they are extremely simple and very effective. Setting them up is easy and they will transfer either JPEG (all versions) and RAW (the pro version) as you shoot them. I currently use my Eye-Fi Mobi card with a Fujifilm X100S and it makes for a good pairing. I shoot just RAW on the camera and then do an in-camera JPEG conversion on a small selection which the Mobi then transfers to the waiting Keenai app. Toshiba and one or two other manufacturers sell SD based wifi image transmitters too although my experience with them is limited I can say that they also work pretty well where there are no super-strong signals operating on the same band. There is also an option to customise them and, whilst I have not gone down this route yet, I am told that it can be very effective.

That’s quite a lot of information to take in and, having played with all of the options, I am strongly leaning towards option 4 for most of the work and option 5 when I have very tight deadlines to work to. Bits of cable and adapters are fine for occasional use but wireless connectivity when you are running around shooting is less of a hassle. I have spent a lot of time using option 4 over the last twelve months and I am pretty good at getting it working as well as fault-finding if it doesn’t.

The complexity of getting the images from the camera into the right apps on the iPad is one of the reasons why I still think about using an iPad for editing as a second option and one only to be used for a few rapid image offloads. For those who ask why I am avoiding the Apple Photos app as much as I can the answer is that you don’t get to see the images as anything other than a small thumbnail to choose which images you want and because the app doesn’t recognise the star ratings that you can apply in-camera to distinguish between the pictures you want and the rest. Canon’s Camera Connect gives you that option and it is small details like this that make the difference between an app being good to work with and not being so good. I am told that Nikon’s equivalent app is Ok too but I have yet to use it.
